OBDSTAR RH850/V850 Adapter Kit for MQB All Keys Lost Airbag Reset IMMO Data/Pincode Reading Works with X300 Classic G3 / X300 Pro4 / P50

OBDSTAR RH850/V850 Adapter Kit – MQB All Keys Lost, Airbag Reset, IMMO Data & Pincode Reading

The OBDSTAR RH850/V850 Adapter Kit is a dedicated working set for the Renesas RH850/V850 family MCUs (R7F series) used in modern dashboards, BCM, ELV and airbag modules. It supports VW/Audi/SEAT/Skoda MQB48-5A all keys lost (AKL) key programming, Ford/Lincoln and Nissan/Renault key programming, dashboard/BCM/ELV IMMO data & pincode reading, and airbag crash data reset.

Supported Devices

• OBDSTAR X300 Classic G3 / KEY MASTER G3 (Basic IMMO or Full version)
• OBDSTAR X300 Pro4 / Key Master 5 (requires MP001 Multifunctional Programmer)
• OBDSTAR P50 – to clear airbag crash data on R7F7016863 / R7F7016843 / R7F7016443 / R7F701330A etc. (requires MP001 Multifunctional Programmer)
• OBDSTAR ECU Master (bench read/write & unlock of encrypted MD1/MG1 ECUs, ECU MASTER C version)

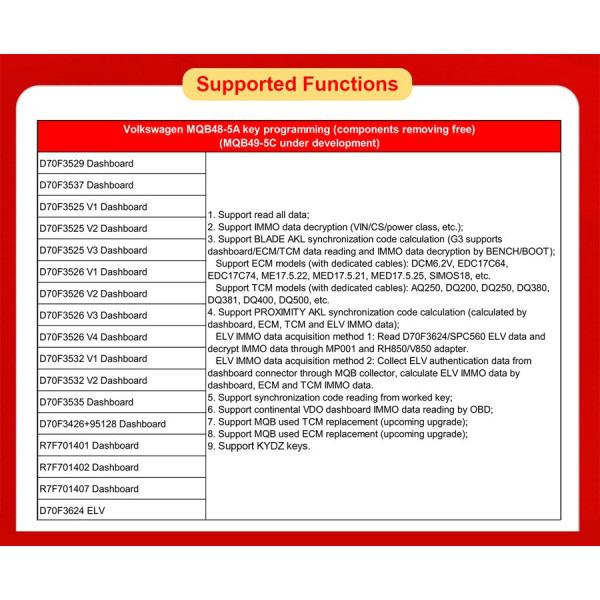

Supported Functions

• Volkswagen MQB48-5A key programming including all keys lost (components removing free; MQB49-5C under development)
• IMMO data reading (all keys lost) for VW/Audi/SEAT/Skoda IMMO IV NEC24C64 / NEC24C32 dashboards by BENCH – no IC removal, no soldering, no server data (with VW4-AKL cable)
• Support BLADE AKL synchronization code calculation (G3 supports dashboard/ECM/TCM data reading and IMMO data decryption by BENCH/BOOT with dedicated cables)
• Support PROXIMITY AKL synchronization code calculation (calculated by dashboard, ECM, TCM and ELV IMMO data)

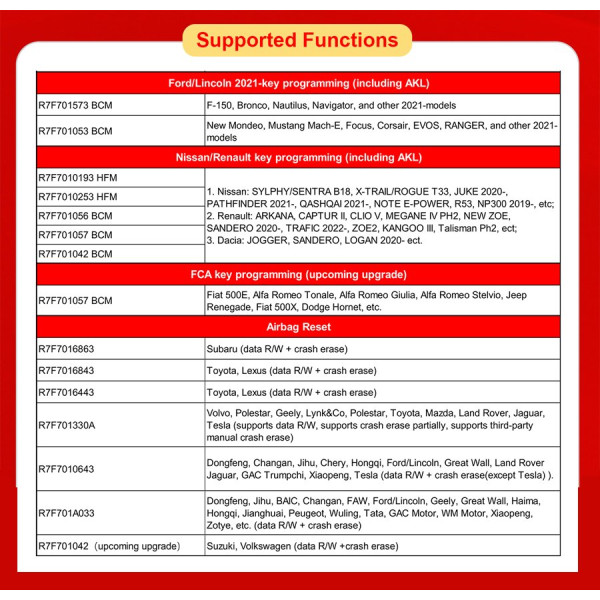

• Ford/Lincoln 2021- key programming (including all keys lost)
• Nissan/Renault key programming (including all keys lost)
• Airbag reset & crash data clear for R7F-series airbag modules (Subaru, Toyota/Lexus, Volvo, Geely, Lynk & Co, Mazda, Land Rover, Jaguar, Tesla, and more)
• Continental VDO dashboard IMMO data reading by OBD; supports KYDZ keys

Update: Unlock Encrypted Bosch MD1/MG1 ECU (Read/Write & Unlock)

With the C4-06 adapter (2026 update):

• Bosch MD1CP032 (BMW B57) TC299
• Bosch MG1CS024 (BMW B48/B58) TC298
• Bosch MG1CS201 (BMW B48/B58) TC298
• Bosch MD1CS069 (FCA) TC299
• Bosch MD1CP006 (Ford) TC298
• Bosch MD1CS089 (ISUZU etc.) TC299 (ECU MASTER C only)

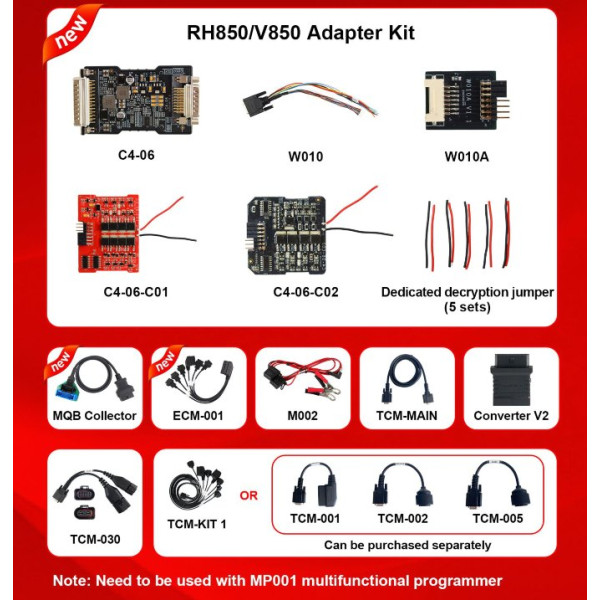

Package Contents

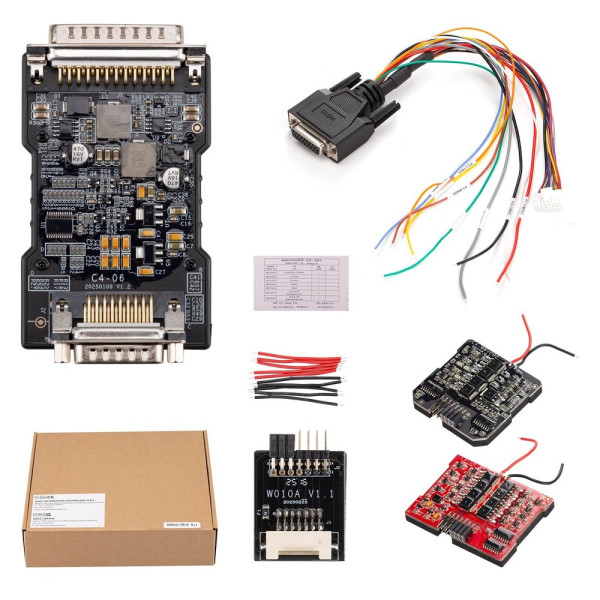

RH850/V850 Adapter Kit: C4-06, W010, W010A, C4-06-C01, C4-06-C02, dedicated decryption jumper (5 sets)

Need MQB Collector, ECM-001 or TCM-Kit?

If you need the MQB Collector, ECM-001 adapter, TCM-Kit 7 in 1, TCM-030 (DQ400E), M002 power cable, TCM bench extension cable or Converter V2, choose the OBDSTAR RH850/V850 Adapter Full Kit instead – the same adapter set with all accessories included.

Specifications

Weight: 0.3 kg  |  Package size: 21.5 cm × 20 cm × 5.4 cm
Note: Needs to be used with MP001 Multifunctional Programmer. All data read is unencrypted and can be used on third-party devices.
