OBDSTAR RH850/V850 C4-06 Adapter Full Kit for MQB All Keys Lost Airbag Reset IMMO Data/Pincode Read MDG1 Unlock (with MQB Collector, ECM-001, TCM-Kit 7 in 1)

Brand: Obdstar
Product Code:OBDS-RHV850-FULLKIT
Dimensions (L x W x H):30.00 x25.00 x10.00 (cm)

Weight:2.60 (kg)

Availability:In Stock

$239.00

Free shipping 7-18 work days by China post

DHL shipping 3-7 work days will arrive.

Description
Reviews (0)

OBDSTAR RH850/V850 Adapter Full Kit – MQB All Keys Lost, Airbag Reset, IMMO Data & Pincode Reading, MDG1 Unlock

The OBDSTAR RH850/V850 Adapter Full Kit is the complete working bundle for the Renesas RH850/V850 family MCUs (R7F series) used in modern dashboards, BCM, ELV and airbag modules. Compared with the basic adapter kit, this full version adds the MQB Collector, ECM-001 adapter, TCM-Kit 7-in-1, TCM-030 (DQ400E), M002 power cable, TCM bench extension cable and Converter V2 – ready out of the box for VW/Audi/SEAT/Skoda MQB48-5A all keys lost, Ford/Lincoln and Nissan/Renault RH850 key programming, SRS airbag reset and encrypted Bosch MD1/MG1 ECU unlocking.

Full Kit Features

VAG MQB48-5A key programming without removing components – built-in MQB Collector, free synchronization code calculation on OBDSTAR’s server (no tokens, up to 3 calculations per day)
Ford/Lincoln 2021- BCM RH850 key programming, including all keys lost
Nissan 2021- / Renault 2019- HFM RH850 key programming, including all keys lost
FCA key programming (coming soon)
Data reading / writing and repair of new SRS ECUs with encrypted RH850 processors – airbag reset
Read IMMO data (all keys lost) for VW/Audi/SEAT/Skoda IMMO IV NEC24C64 / NEC24C32 dashboards by BENCH – no IC removal, no soldering, no server data (with VW4-AKL cable)
Dashboard, BCM, ELV IMMO data & pincode reading
All data read is unencrypted and can be used on third-party devices

Update: Unlock Encrypted Bosch MD1/MG1 ECU (Read/Write & Unlock)

With the C4-06 adapter (2026 update):

Bosch MD1CP032 (BMW B57) TC299
Bosch MG1CS024 (BMW B48/B58) TC298
Bosch MG1CS201 (BMW B48/B58) TC298
Bosch MD1CS069 (FCA) TC299
Bosch MD1CP006 (Ford) TC298
Bosch MD1CS089 (ISUZU etc.) TC299 (ECU MASTER C only)

VW/Audi/SEAT/Skoda MQB48-5A key programming (V45.48, April 2025) supports online synchronization code calculation and all keys lost. MQB49-5C is under development.

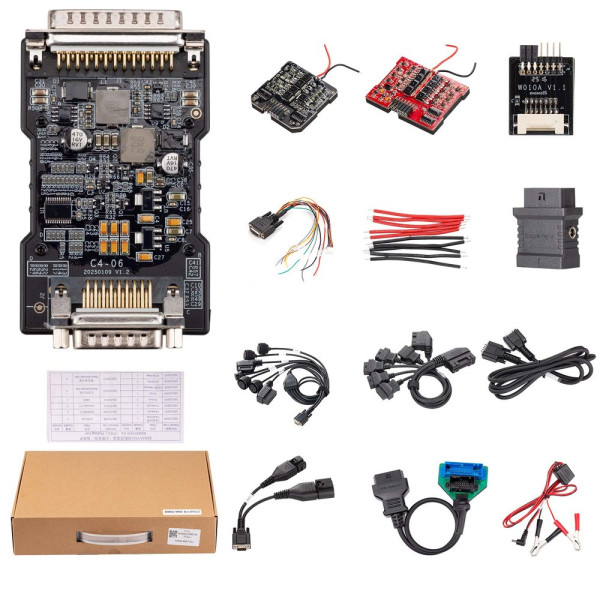

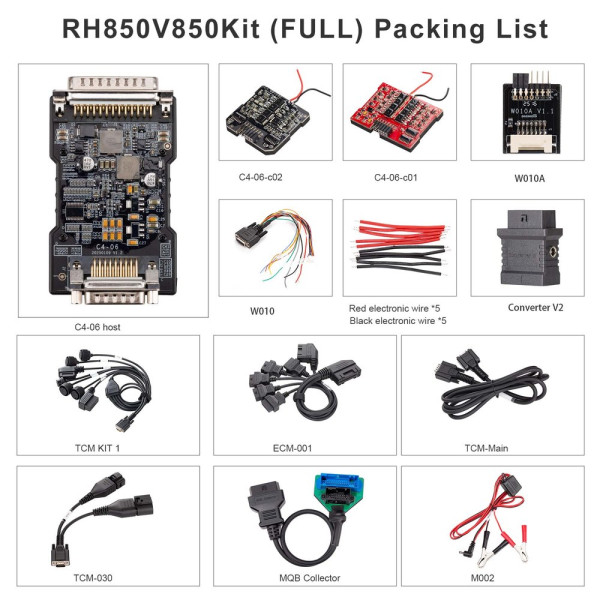

What’s in the Box (14 pcs)

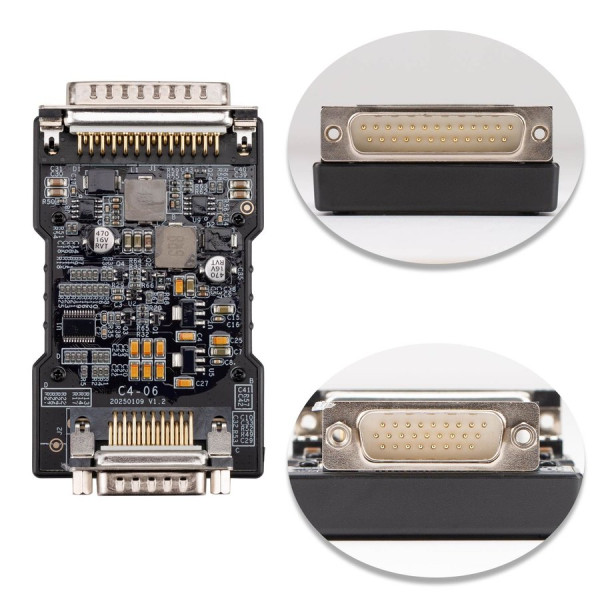

C4-06 main adapter
W010, W010A adapters
C4-06-C01, C4-06-C02 cables
Dedicated decryption jumper (5 sets)
MQB Collector
ECM-001 adapter
TCM-Kit 7 in 1
TCM-030 adapter for DQ400E
M002 power cable
TCM bench extension cable
Converter V2

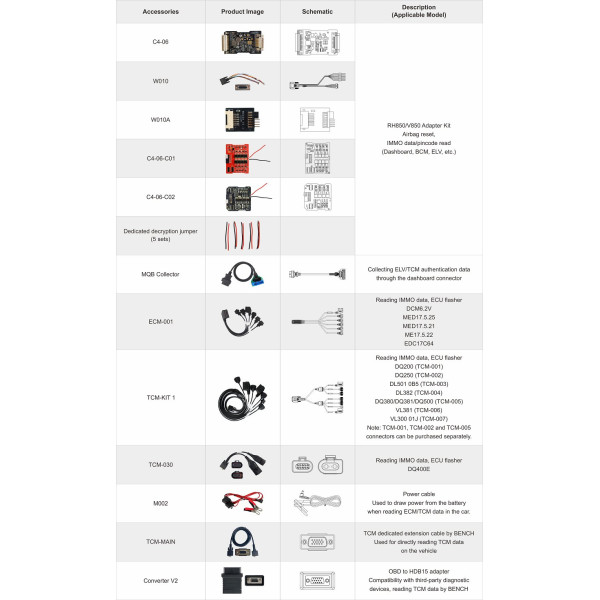

Basic Kit vs Full Kit – Which One Do You Need?

	Basic Adapter Kit	Full Kit (this listing)
C4-06 / W010 / W010A / C4-06-C01 / C4-06-C02 / decryption jumpers	Included	Included
MQB48-5A key programming (AKL)	Supported (MQB Collector required, sold separately)	Supported – MQB Collector included
Sync code calculation	–	Free on OBDSTAR server, no tokens, up to 3/day
ECM / TCM bench work	–	ECM-001, TCM-Kit 7-in-1, TCM-030, M002, TCM bench cable, Converter V2 included
Airbag reset / IMMO data / pincode / MDG1 unlock	Supported	Supported
Weight	0.3 kg	2.6 kg

Supported Devices

OBDSTAR X300 Classic G3 / KEY MASTER G3 (Basic IMMO or Full version)
OBDSTAR X300 Pro4 / Key Master 5 (requires MP001 Multifunctional Programmer)
OBDSTAR P50 – to clear airbag crash data on R7F7016863 / R7F7016843 / R7F7016443 / R7F701330A etc. (requires MP001 Multifunctional Programmer)
OBDSTAR ECU Master (MD1/MG1 bench unlocking, ECU MASTER C version)

Frequently Asked Questions

Q: What is the difference between the Full Kit and the basic RH850/V850 adapter kit?
A: The Full Kit contains everything in the basic kit (C4-06, W010, W010A, C4-06-C01, C4-06-C02, decryption jumpers) plus the MQB Collector, ECM-001 adapter, TCM-Kit 7-in-1, TCM-030 (DQ400E), M002 power cable, TCM bench extension cable and Converter V2. If you plan to do MQB all-keys-lost work or ECM/TCM bench jobs, choose the Full Kit – buying the accessories separately costs more.

Q: Does MQB48-5A key programming need extra tokens or fees?
A: No. With the Full Kit, synchronization codes for MQB48-5A all-keys-lost are calculated on OBDSTAR’s server for free – no tokens, up to 3 calculations per day.

Q: Can I use this kit with OBDSTAR X300 Pro4 or P50?
A: Yes, but the X300 Pro4 / Key Master 5 and the P50 also require the MP001 Multifunctional Programmer (sold separately) to work with the RH850/V850 kit.

Q: Which ECU models can be unlocked?
A: Encrypted Bosch MD1/MG1 ECUs including MD1CP032 (BMW B57), MG1CS024 and MG1CS201 (BMW B48/B58), MD1CS069 (FCA), MD1CP006 (Ford) and MD1CS089 (ISUZU etc., ECU MASTER C only).

Q: Is the data readable by other tools?
A: Yes. All data read through this adapter kit is unencrypted and can be used on third-party devices.

Q: Which vehicles are covered for key programming?
A: VW/Audi/SEAT/Skoda MQB48-5A (all keys lost, components removing free; MQB49-5C under development), Ford/Lincoln 2021- BCM RH850 (including AKL), Nissan 2021- / Renault 2019- HFM RH850 (including AKL). FCA key programming is coming soon.

Specifications

Weight	2.6 kg (5.73 lb)
Main adapter	C4-06
Package	14-piece full bundle (see box list above)
Compatibility	X300 Classic G3 / KEY MASTER G3 / X300 Pro4 / Key Master 5 / P50 / ECU Master (see supported devices)

Note: To read IMMO IV NEC24C64 / NEC24C32 dashboards by BENCH you also need the VW4-AKL cable. Functions and coverage keep expanding with software updates; contact us to confirm your specific job before ordering.
