OBDSTAR MotoMaster Full Version Motorcycle Diagnostic Scanner MOTO Marine E-MOTO Diag IMMO Key Programming Cluster Recalibration ECU Flasher Make Key

OBDSTAR MotoMaster Full Version – MOTO + Marine + E-MOTO Diagnostic Scanner with IMMO, Odometer Recalibration, ECU Flasher & Key Programming

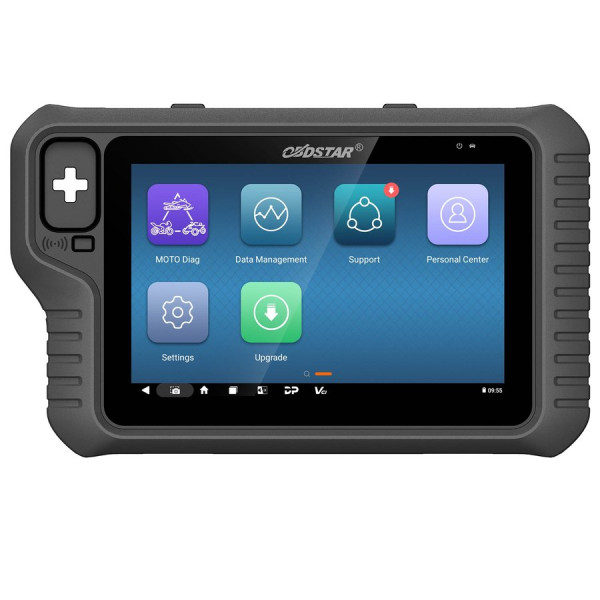

The OBDSTAR MotoMaster Full Version is OBDSTAR’s flagship 8-inch Android 11 motorcycle diagnostic scanner, covering 100+ motorcycle / ATV / UTV / snowmobile brands, Marine (jet-ski) diagnostics, E-MOTO (electric motorcycle & scooter) diagnostics, motorcycle IMMO key programming, odometer (cluster) recalibration, ECU flashing and make key functions – all in one rugged tablet built for workshops and locksmiths.

MotoMaster Full vs. MotoMaster STD

If you also service personal watercraft, the Full Version is the one to choose – it is the only configuration with the Marine Diag software license activated.

Product Features

• Android 11 operation system with one-click OTA software upgrade over Wi-Fi
• Full diagnostic functions: read/clear fault codes, live data stream, actuation test, special settings and coding
• First-in-industry fault guidance, technical bulletins and diag socket (DLC) location help you diagnose accurately and efficiently
• Exclusive interactive wiring diagrams and electrical description query system
• Record & play back real-time data flow to quickly locate sensor and component faults
• Diversified data display: text, waveform and instrument-style views
• Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, TPMS service, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset and more
• One-click remote assistance from OBDSTAR technical staff; screen recording and wireless screen casting supported
• Works together with the OBDSTAR mobile APP (DLC location, flash code query, technical bulletin, manual service lamp reset, parameters)

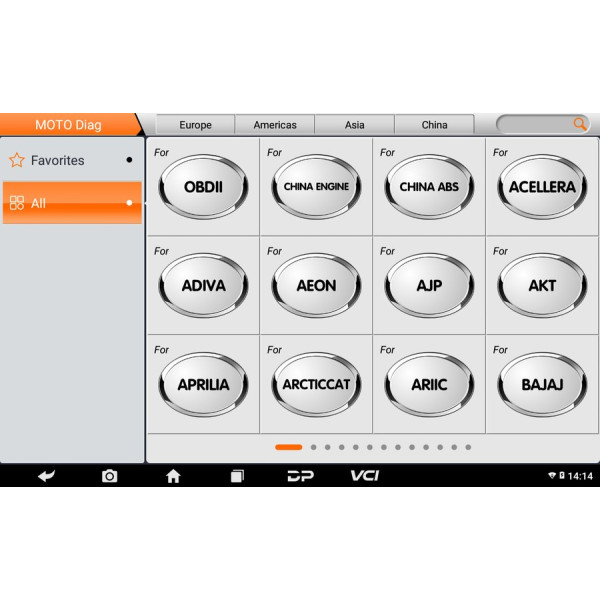

Motorcycle / Snowmobile / ATV / UTV Diagnostic Coverage (100+ Brands)

Asia: AEON, Bajaj, Benelli (DSK), Daelim Motor, Hartford, Hero, Honda, Hyosung, Kawasaki, Kymco, PGO, Royal Enfield, Suzuki, SYM, TGB, TVS, Yamaha

Europe: Adiva, AJP, Aprilia, Benelli, Beta Motor, BMW, Brixton Motorcycles, Brough Superior, Derbi, Ducati, Fantic Motor, FB Mondial, GASGAS, GG Technik, Gilera, Goes, HM, Husaberg, Husqvarna, Italjet, Keeway, Kramer Motorcycles, Kreidler, KSR Moto, KTM, KVN Motors, Lambretta, Lexmoto, Macbor, Malaguti, Malcor, Mash, MBK, MBP, MH, Minsk, Mitt, Moto Guzzi, Moto Morini, Motron, Mutt Motorcycles, MV Agusta, Nox, Orcal, Overbikes, Peugeot, Piaggio, Qooder, Quadro, Rieju, Royal Alloy, Scorpa, Sherco, Stels, SWM, Triumph, Ural, Vento, Verve Moto, Vespa, Wottan and more

Americas: Acellera, AKT, Arctic Cat, BRP, Buell, Coleman, CSC Motorcycles, Dafra, Harley-Davidson, Indian, Keller, Polaris, UM, Victory and more

China: Ariic, Baodiao, Benda, CFMOTO, China ABS, China Engine, Zongshen, Cyclone, Dayang, Dayun, Dongfang, FYM, Gaokin, Geely Motor, Generic, Geon, Guowei, Haojiang, Haojue, Hisun, Jincheng, Keeway, Kove, Lifan, Linhai, Longjia, Loncin, QJ Benelli, QJMOTOR, Regal Raptor, Riya, Senke, Shineray, Sinnis, Tianma, TR Motor, Voge, Wuyang-Honda, Zontes and more

E-MOTO Diagnostic Coverage

Brose, Niu, Yadea, ZEEHO electric motorcycles and scooters

Marine (Jet-Ski) Diagnostic Coverage – Full Version Only

BRP (Sea-Doo), Honda, Kawasaki, Yamaha personal watercraft

Motorcycle Key Programming (IMMO) Coverage

• Europe: BMW, Ducati, Italjet, Peugeot, Piaggio, Triumph
• Americas: BRP, Harley-Davidson, Indian, Polaris
• Asia: Honda, Kawasaki, Suzuki, Yamaha
• China: Dayang, Haojue

Note: Aprilia, BMW, Ducati, Honda, Kawasaki, Piaggio, Suzuki and Yamaha IMMO by EEPROM require the optional P001 kit; Honda, Suzuki and Yamaha IMMO by BENCH require the optional P003+ kit.

Cluster Recalibration & ECU Flasher Coverage

Cluster recalibration by dump: Aprilia, Benelli, BMW, Cagiva, Ducati, Generic, KTM, MV Agusta, Peugeot, Piaggio, Triumph, Buell, Harley-Davidson, Honda, Kawasaki, Suzuki, Yamaha, Haojue, Kymco

Odometer recalibration by OBD/Bench: Aprilia, BRP, Ducati, KTM

ECU flasher: Aprilia, BRP, CFMOTO, Derbi, Gilera, Italjet, KTM, Moto Guzzi, Peugeot, Piaggio, QJ Benelli, Royal Enfield, Vespa

Make key: Aprilia, BMW, Ducati, Honda, Kawasaki, Piaggio, Suzuki, Yamaha

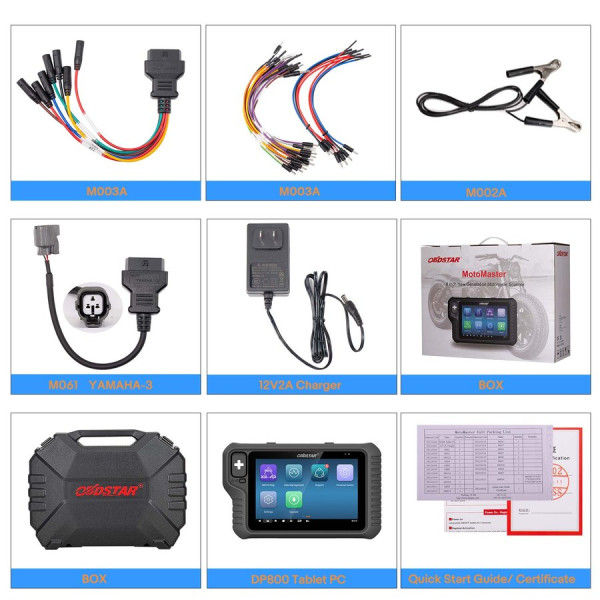

What’s in the Box (Full Version Package)

MotoMaster tablet ×1, M001A main cable, M002 clipper cable, M002A GND cable, M003A multi-functional jumper, M004 Aprilia/Ducati/Honda/KTM/Piaggio/Vespa/Yamaha-3 cable, M005 Kawasaki-4+6 cable, M006 Kawasaki-4+4 cable, M012A Suzuki-6 cable, M015A Honda-4 cable, M018A Yamaha-3+4+3 cable, M019 KTM-6 cable, M021A AEON/Benelli/QJ Benelli-6 cable, M026 SYM-3 cable, M027 Kymco/Kawasaki-3 cable, M034 Harley-Davidson-4+6 cable, M037 Ducati-4 cable, M040 BMW-10 cable, M041 OBD-6 cable, M042A Indian/Victory-8 cable, M043 BRP-6 cable, M061 Yamaha-3 cable, 12V 2A charger, carrying case and quick start guide.

FAQ – OBDSTAR MotoMaster Full

Q1: What is the difference between MotoMaster Full and STD?
A: Both configurations share MOTO Diag, E-MOTO Diag, IMMO, cluster recalibration, ECU flasher and make key. Only the Full Version adds the Marine Diag license for BRP Sea-Doo, Honda, Kawasaki and Yamaha jet-skis.

Q2: Does it support key programming for my motorcycle?
A: Built-in IMMO coverage includes BMW, Ducati, Piaggio, Peugeot, Triumph, Italjet, Harley-Davidson, Indian, Polaris, BRP, Honda, Kawasaki, Suzuki, Yamaha, Dayang and Haojue. Some EEPROM/bench work needs the optional P001 or P003+ adapter kit.

Q3: Can it diagnose electric motorcycles?
A: Yes. The E-MOTO module covers Brose, Niu, Yadea and ZEEHO. For combustion scooters and motorcycles, see also the brand-specific OBDSTAR iScan Ducati motorcycle diagnostic tool.

Q4: Does it read live data and support actuation tests?
A: Yes – live data stream with text, waveform and instrument views, actuation tests, coding, settings and automatic VIN recognition are all supported.

Q5: How do updates work?
A: The tablet runs Android 11 with one-click OTA upgrade over Wi-Fi. New models and functions keep rolling out.

Q6: Which vehicles can it recalibrate the odometer on?
A: Cluster recalibration by dump covers 20+ brands (see list above); odometer recalibration by OBD/Bench covers Aprilia, BRP, Ducati and KTM.
